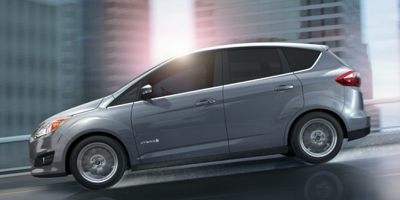

2015 Ford C-Max Hybrid

2015 Ford C-Max Hybrid

5dr HB SE

View more styles
Close

All 2015 Ford C-Max Hybrid Styles

Style NameFuel TypeDrive TypeMPGMSRP
5dr HB SEHybrid FuelFront Wheel DriveCity: 42
Hwy: 42
$24,170.00
5dr HB SELHybrid FuelFront Wheel DriveCity: 42
Hwy: 42
$27,170.00

4-door Large Passenger Car
Front Wheel Drive
Base MSRP: $24,170.00
Invoice: $22,539.00
Hwy MPG: 36.8 mpg
City MPG: 42 mpg

Pros

Excellent efficiency and power from both the hybrid and the "Energi" plug-in hybrid models; small car styling with lots of interior space; competitive pricing

Model Highlights

The 2015 Ford C-MAX exemplifies Ford's endeavor in the world of hybrids. Two models in three trims are offered: the Hybrid SE and SEL, as well as the plug-in Energi. All are powered by a 2.0L inline-4 Atkinson engine with an electric motor, which total 188 system horsepower. The difference in the Energi is its battery. That car utilizes a 7.6-kWh Lithium-ion battery (vs. a 1.4-kWh cell in the regular Hybrid). This means the battery alone can power the car, without any gas engine assistance, for a range of up to 20 miles. Whereas the Hybrid's smaller battery is recharged solely by the use of the gasoline engine, the Energi's battery can be plugged into either a 120- or 240-volt outlet for a total charge time of either 7 or 2.5 hours, depending upon the outlet's voltage. All C-MAX powerplants are mated to an electronic continuously variable transmission driving the front wheels. So equipped, the Hybrid is EPA-rated at a combined 40 mpg, while Ford claims the Energi can deliver a 95 mpg equivalent.

Inside, a dual-LCD SmartGauge with EcoGuide keeps drivers informed with real-time system information, which helps ensure maximum efficiency from the C-MAX driving experience. It is fully customizable and easily controlled through steering wheel-mounted switches. The gauge indicates instant fuel economy and fuel economy history, in addition to other, more common features such as odometer readout.

Technology is infused in nearly every aspect of the C-MAX. Available on all models is SYNC with MyFord, which provides hands-free access to everything needed to keep the driver informed: a 4.2-inch LCD screen, telephone, Bluetooth audio, turn-by-turn navigation and more. SYNC with MyFord Touch adds even more great features, including an 8-inch touch central screen with dual 4.2-inch screens, Wi-Fi capability and voice recognition.

The C-MAX Hybrid SE comes equipped with power mirrors with integrated turn signal indicators, with 17-inch aluminum wheels, power one-touch up/down windows all around, 60/40 split-fold rear seat, dual-zone climate control, SYNC MyFord voice-activated communications and entertainment system and a leather-wrapped tilt/telescopic steering wheel with audio and cruise controls. In the Hybrid SEL and Engeri models you'll find power heated mirrors, fog lamps, rain-sensing wipers, a reverse sensing system, ambient lighting, SYNC with MyFord Touch, heated seats with 10-way power adjust on the driver's side and much more.

Several packages are available on the C-MAX, including a Winter Package, Power Liftgate Package, a Premium Audio Package and two different technology packages.

All C-MAX models benefit from seven airbags, AdvanceTrac stability control, traction control, and 4-wheel anti-lock brakes.

Model News

For 2015, the Ford C-MAX is unchanged.

Value Writeup

With the C-MAX, Ford has given the hybrid world a shot in the arm. The C-MAX is a stylish alternative to more established players like the Prius, and its combined 40 mpg fuel efficiency will take you far. Even better, after a generous federal tax credit, the Energi plug-in model is the most affordable plug-in hybrid in America -- besting high-efficiency competitors such as the Chevy Volt, Nissan Leaf and Toyota Prius plug-in.

Pricing

To get up to date 2015 Ford C-Max Hybrid values, we highly recommend you evaluate and compare the Retail, Private Party, and/or Trade-In Values from the following reputable market pricing providers:

Exterior Color Interior Colors


Ruby Red Metallic Tinted Clearcoat

Manufacturers Code: (RR)

  • Charcoal Black
  • Medium Light Stone


Tectonic

Manufacturers Code: (HI)

  • Charcoal Black
  • Medium Light Stone


Oxford White

Manufacturers Code: (YZ)

  • Charcoal Black
  • Medium Light Stone


White Platinum Metallic Tri-Coat

Manufacturers Code: (UG)

  • Charcoal Black
  • Medium Light Stone


Tuxedo Black

Manufacturers Code: (UH)

  • Charcoal Black
  • Medium Light Stone


Ingot Silver

Manufacturers Code: (UX)

  • Charcoal Black
  • Medium Light Stone


Magnetic

Manufacturers Code: (J7)

  • Charcoal Black
  • Medium Light Stone


Blue Candy Metallic Tinted Clearcoat

Manufacturers Code: (Z9)

  • Charcoal Black
  • Medium Light Stone

Vehicle

Emissions
Tons/yr of CO2 Emissions @ 15K mi/yearN/A
EPA Greenhouse Gas ScoreN/A
Vehicle
EPA ClassificationLarge Cars

Powertrain

Transmission
DrivetrainFront Wheel Drive
Trans Type1
Trans Description Cont.CVT w/OD
First Gear Ratio (:1)N/A
Reverse Ratio (:1)N/A
Clutch SizeN/A
Final Drive Axle Ratio (:1)2.57
Mileage
EPA Fuel Economy Est - Hwy36.8 MPG
Cruising Range - City567.00 mi
EPA Fuel Economy Est - City42 MPG
Fuel Economy Est-Combined39 MPG
Cruising Range - Hwy496.80 mi
EPA MPG Equivalent - CityN/A
EPA MPG Equivalent - HwyN/A
EPA MPG Equivalent - CombinedN/A
Battery RangeN/A
Engine
Engine Order Code99U
Engine TypeGas/Electric I-4
Displacement2.0 L/122
Fuel SystemSequential MPI
SAE Net Horsepower @ RPM188 @ 6000
SAE Net Torque @ RPM129 @ 4000
Electrical
Cold Cranking Amps @ 0° F (Primary)390
Maximum Alternator Capacity (amps)N/A
Cooling System
Total Cooling System CapacityN/A

Dimensions

Interior Dimensions
Passenger Capacity5
Passenger Volume99.7 ft³
Front Head Room41 in
Front Leg Room43.1 in
Front Shoulder Room55.9 in
Front Hip Room54.3 in
Second Head Room39.4 in
Second Leg Room36.5 in
Second Shoulder Room55.2 in
Second Hip Room51.9 in
Exterior Dimensions
Wheelbase104.3 in
Length, Overall173.6 in
Width, Max w/o mirrors72 in
Height, Overall63.9 in
Track Width, Front60.5 in
Track Width, Rear60.4 in
Min Ground Clearance5.5 in
Liftover HeightN/A
Cargo Area Dimensions
Cargo Volume with Rear Seat Up24.5 ft³
Cargo Volume with Rear Seat Down52.6 ft³
Trunk VolumeN/A

Chassis

Weight Information
Base Curb Weight3607 lbs
Trailering
Dead Weight Hitch - Max Trailer Wt.N/A
Dead Weight Hitch - Max Tongue Wt.N/A
Wt Distributing Hitch - Max Trailer Wt.N/A
Wt Distributing Hitch - Max Tongue Wt.N/A
Suspension
Suspension Type - FrontStrut
Suspension Type - RearMulti-Link
Suspension Type - Front (Cont.)Strut
Suspension Type - Rear (Cont.)Multi-Link
Shock Absorber Diameter - FrontN/A
Shock Absorber Diameter - RearN/A
Stabilizer Bar Diameter - FrontN/A
Stabilizer Bar Diameter - RearN/A
Tires
Front Tire Order CodeTDH
Rear Tire Order CodeTDH
Front Tire SizeP225/50VR17
Rear Tire SizeP225/50VR17
Wheels
Front Wheel Size17 X 7 in
Rear Wheel Size17 X 7 in
Front Wheel MaterialAluminum
Rear Wheel MaterialAluminum
Steering
Steering TypeRack-Pinion
Steering Ratio (:1), OverallN/A
Lock to Lock Turns (Steering)N/A
Turning Diameter - Curb to Curb38.4 ft
Turning Diameter - Wall to WallN/A
Brakes
Brake TypeN/A
Brake ABS System4-Wheel
Brake ABS System (Second Line)N/A
Disc - Front (Yes or )Yes
Disc - Rear (Yes or )Yes
Front Brake Rotor Diam x Thickness10.9 in
Rear Brake Rotor Diam x Thickness11 in
Fuel Tank
Fuel Tank Capacity, Approx13.5 gal
Aux Fuel Tank Capacity, ApproxN/A

Warranty Information

Basic:
3 Years/36,000 Miles

Drivetrain:
5 Years/60,000 Miles

Corrosion:
5 Years/Unlimited Miles

Hybrid/Electric Components:
8 Years/100,000 Miles

Roadside Assistance:
5 Years/60,000 Miles

Crash Test Rating

US NHTSA CRASH TEST RESULTS:

Overall Rating: * * * *

Overall Frontal Barrier Crash Rating: * * * *

Overall Side Crash Rating: * * * * *

Side Barrier Rating: * * * * *

Side Barrier Rating Note: DURING THE SIDE BARRIER TEST, THE SIDE CURTAIN AIR BAG DEPLOYED ON TOP OF THE REAR PASSENGER DUMMYS HEAD


Combined Side Barrier and Pole Ratings:
Front Seat Rating: * * * * * Rear Seat Rating: * * * * *

Overall Rollover Rating: * * * *
Dynamic Test Result: No Tip
Risk of Rollover: 14.7%

Note Regarding Driver Rating:

Male: Average sized adult male dummy in 35-MPH crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs. Female: Small-sized adult female dummy in 35-mph crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs.

Rollover Note: Dynamic (moving) test results (Tip or No Tip) and measured rollover-related properties determine vehicle's risk of rollover in single vehicle crash and its rollover rating. The Rollover Resistance Rating utilizes a "fishhook" maneuver which is a series of abrupt turns at varying speeds to see how "top-heavy" a vehicle is.

Recall Information

US NHTSA CAMPAIGN ID:
15V436000

Mfg's Report Date:
JUL 07, 2015

Component:
ELECTRICAL SYSTEM:IGNITION

Potential Number Of Units Affected:
374781

Summary:
Ford Motor Company (Ford) is recalling certain model year 2015 Ford Escape vehicles manufactured April 1, 2014, to June 12, 2015, Ford Focus vehicles manufactured June 17, 2014, to June 12, 2015, and Ford C-Max vehicles manufactured April 22, 2014, to June 12, 2015. In the affected vehicles, the engine may continue to run after the key or the START/STOP engine button is turned to off. As such, these vehicles fail to comply with the requirements of Federal Motor Vehicle Safety Standard (FMVSS) number 114, "Theft Protection and Rollaway Prevention."

Consequence:
If the engine does not turn off as expected, someone could move the transmission shifter out of park and the vehicle may move unintentionally, increasing the risk of a crash.

Remedy:
Ford will notify owners, and dealers will update the body control module software, free of charge. The recall began on July 27, 2015. Owners may contact Ford customer service at 1-866-436-7332. Ford's number for this recall is 15C06.

Dates of Manufacture:
APR 21, 2014 to JUN 11, 2015

Manufacturer Recall Number:
15C06
US NHTSA CAMPAIGN ID:
16V643000

Mfg's Report Date:
SEP 05, 2016

Component:
LATCHES/LOCKS/LINKAGES:DOORS:LATCH

Potential Number Of Units Affected:
2046297

Summary:
Ford Motor Company (Ford) is recalling certain model year 2012-2015 Ford Focus, 2013-2015 Ford Escape and Ford C-MAX, 2015 Lincoln MKC and Ford Mustang, and 2014-2016 Ford Transit Connect vehicles. A component within the door latches may break, preventing the doors from latching and/or leading the driver or a passenger to believe a door is securely closed when, in fact, it is not.

Consequence:
A door that is not securely latched could open while the vehicle is in motion, increasing the risk of injury to a vehicle occupant.

Remedy:
Ford will notify owners, and dealers will replace the door latches with an improved part, free of charge. The recall began on January 27, 2017. Owners may contact Ford customer service at 1-866-436-7332. Ford's number for this recall is 16S30.

Dates of Manufacture:
JAN 18, 2012 to JAN 30, 2015

Manufacturer Recall Number:
16S30


Rebate Information

Sorry there are no rebates or incentives currently available.
