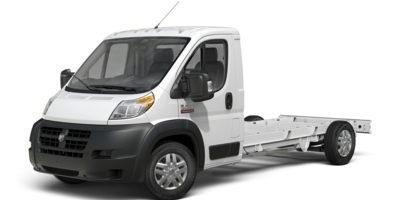

2015 Ram ProMaster

2015 Ram ProMaster

3500 Low Roof 159" WB, 104" CA

View more styles

All 2015 Ram ProMaster Styles

Style NameFuel TypeDrive TypeMPGMSRP
2500 136" WB, 81" CA Low RoofGasoline FuelFront Wheel DriveCity: 0
Hwy: 0
3500 159" WB, 104" CA Low RoofGasoline FuelFront Wheel DriveCity: 0
Hwy: 0
3500 Extended 159" WB, 104" CA Low RoofGasoline FuelFront Wheel DriveCity: 0
Hwy: 0

2WD Light Duty Chassis-Cab Trucks
Front Wheel Drive
Base MSRP: $27,815.00
Invoice: $26,787.00
Hwy MPG: N/A mpg
City MPG: N/A mpg


To get up to date 2015 Ram ProMaster values, we highly recommend you evaluate and compare the Retail, Private Party, and/or Trade-In Values from the following reputable market pricing providers:

Exterior Color Interior Colors

Broom Yellow

Manufacturers Code: (P67)

  • Gray
  • Gray

Black Clearcoat

Manufacturers Code: (PX8)

  • Gray
  • Gray

Bright White Clearcoat

Manufacturers Code: (PW7)

  • Gray
  • Gray

True Blue Pearlcoat

Manufacturers Code: (PBU)

  • Gray
  • Gray

Flame Red Clearcoat

Manufacturers Code: (PR4)

  • Gray
  • Gray

Granite Crystal Metallic Clearcoat

Manufacturers Code: (PAU)

  • Gray
  • Gray

Sandstone Pearlcoat

Manufacturers Code: (PFS)

  • Gray
  • Gray

Bright Silver Metallic Clearcoat

Manufacturers Code: (PS2)

  • Gray
  • Gray

Deep Cherry Red Crystal Pearlcoat

Manufacturers Code: (PRP)

  • Gray
  • Gray


Tons/yr of CO2 Emissions @ 15K mi/yearN/A
EPA Greenhouse Gas ScoreN/A


Weight Information
Gross Axle Wt Rating - Front4630 lbs
Gross Axle Wt Rating - Rear5291 lbs
Curb Weight - Front3149 lbs
Curb Weight - Rear1090 lbs
Option Weight - Front0.00 lbs
Option Weight - Rear0.00 lbs
Reserve Axle Capacity - Front1481.00 lbs
Reserve Axle Capacity - Rear4201.00 lbs
As Spec'd Curb Weight4239.00 lbs
As Spec'd Payload5111.00 lbs
Maximum Payload Capacity5111.00 lbs
Gross Combined Wt Rating11500 lbs
Gross Axle Weight Rating9921.00 lbs
Curb Weight4239.00 lbs
Reserve Axle Capacity5682.00 lbs
Total Option Weight0.00 lbs
Gross Vehicle Weight Rating9350.00 lbs
Dead Weight Hitch - Max Trailer Wt.5100 lbs
Dead Weight Hitch - Max Tongue Wt.510 lbs
Wt Distributing Hitch - Max Trailer Wt.5100 lbs
Wt Distributing Hitch - Max Tongue Wt.510 lbs
Maximum Trailering Capacity5100 lbs
Frame TypeN/A
Sect Modulus Rails OnlyN/A
Frame RBMN/A
Frame StrengthN/A
Frame ThicknessN/A
Suspension Type - FrontStrut
Suspension Type - RearLeaf
Spring Capacity - FrontN/A
Spring Capacity - RearN/A
Axle Type - FrontIndependent
Axle Type - RearRigid Axle
Axle Capacity - Front4600 lbs
Axle Capacity - Rear5250 lbs
Axle Ratio (:1) - Front3.86
Axle Ratio (:1) - Rear3.86
Shock Absorber Diameter - FrontN/A
Shock Absorber Diameter - RearN/A
Stabilizer Bar Diameter - FrontN/A
Stabilizer Bar Diameter - RearN/A
Front Tire Order CodeTWA
Rear Tire Order CodeTWA
Front Tire SizeLT225/75R16
Rear Tire SizeLT225/75R16
Spare Tire SizeFull-Size
Front Tire CapacityN/A
Rear Tire CapacityN/A
Spare Tire CapacityN/A
Revolutions/Mile @ 45 mph - FrontN/A
Revolutions/Mile @ 45 mph - RearN/A
Revolutions/Mile @ 45 mph - SpareN/A
Front Wheel Size16 X 6 in
Rear Wheel Size16 X 6 in
Spare Wheel SizeFull-Size in
Front Wheel MaterialSteel
Rear Wheel MaterialSteel
Spare Wheel MaterialSteel
Steering TypeRack-Pinion
Steering Ratio (:1), OverallN/A
Steering Ratio (:1), On CenterN/A
Steering Ratio (:1), At LockN/A
Turning Diameter - Curb to Curb93.6 ft
Turning Diameter - Wall to WallN/A
Brake Type4-Wheel Disc
Brake ABS System4-Wheel
Brake ABS System (Second Line)4-Wheel
Disc - Front (Yes or )Yes
Disc - Rear (Yes or )Yes
Front Brake Rotor Diam x Thickness11.8 in
Rear Brake Rotor Diam x Thickness11 in
Fuel Tank
Fuel Tank Capacity, Approx24 gal
Aux Fuel Tank Capacity, ApproxN/A
Fuel Tank LocationN/A
Aux Fuel Tank LocationN/A


DrivetrainFront Wheel Drive
Trans Order CodeDG2
Trans Type6
Trans Description Cont.Automatic w/OD
First Gear Ratio (:1)3.90
Second Gear Ratio (:1)2.69
Third Gear Ratio (:1)2.16
Fourth Gear Ratio (:1)1.37
Fifth Gear Ratio (:1)0.95
Sixth Gear Ratio (:1)0.65
Reverse Ratio (:1)3.04
Clutch SizeN/A
Trans Power Take OffN/A
Final Drive Axle Ratio (:1)N/A
Transfer Case ModelNone
Transfer Case Gear Ratio (:1), HighN/A
Transfer Case Gear Ratio (:1), LowN/A
Transfer Case Power Take OffNo
EPA Fuel Economy Est - HwyN/A
Cruising Range - CityN/A
EPA Fuel Economy Est - CityN/A
Fuel Economy Est-CombinedN/A
Cruising Range - HwyN/A
Engine Order CodeERB
Engine TypeRegular Unleaded V-6
Displacement3.6 L/220
Fuel SystemSequential MPI
SAE Net Horsepower @ RPM280 @ 6400
SAE Net Torque @ RPM260 @ 4175
Engine Oil CoolerRegular Duty
Cold Cranking Amps @ 0° F (Primary)700
Cold Cranking Amps @ 0° F (2nd)700
Cold Cranking Amps @ 0° F (3rd)N/A
Maximum Alternator Capacity (amps)220
Cooling System
Total Cooling System CapacityN/A


Interior Dimensions
Passenger Capacity2
Front Head RoomN/A
Front Leg Room38.8 in
Front Shoulder Room74.8 in
Front Hip RoomN/A
Second Head RoomN/A
Second Leg RoomN/A
Second Shoulder RoomN/A
Second Hip RoomN/A
Exterior Dimensions
Wheelbase159 in
Length, Overall w/o rear bumper230 in
Length, Overall w/rear bumperN/A
Length, OverallN/A
Width, Max w/o mirrors80.7 in
Height, Overall84.8 in
Overhang, Front37.3 in
Overhang, Rear w/o bumper33.9 in
Front Bumper to Back of CabN/A
Cab to Axle104.1 in
Cab to End of FrameN/A
Ground to Top of Load Floor25.3 in
Ground to Top of FrameN/A
Frame Width, RearN/A
Ground Clearance, FrontN/A
Ground Clearance, RearN/A
Body Length0.00 ft
Cab to BodyN/A
Cargo Area Dimensions
Cargo Box Width @ Top, RearN/A
Cargo Box Width @ FloorN/A
Cargo Box Width @ WheelhousingsN/A
Cargo Box (Area) HeightN/A
Tailgate WidthN/A
Cargo VolumeN/A
Ext'd Cab Cargo VolumeN/A

Warranty Information

3 Years/36,000 Miles

5 Years/100,000 Miles

5 Years/Unlimited Miles

Roadside Assistance:
5 Years/100,000 Miles

Rebate Information

Sorry there are no rebates or incentives currently available.
