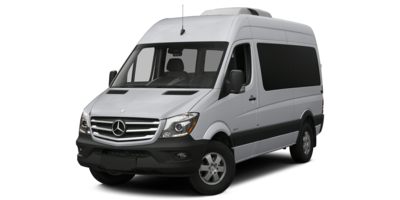

2015 Mercedes-Benz Sprinter Passenger Vans

2015 Mercedes-Benz Sprinter Passenger Vans

RWD 2500 144"

View more styles
Close

All 2015 Mercedes-Benz Sprinter Passenger Vans Styles

Style NameFuel TypeDrive TypeMPGMSRP
2500 144"Diesel FuelRear Wheel DriveCity: 0
Hwy: 0
$39,995.00
2500 170"Diesel FuelRear Wheel DriveCity: 0
Hwy: 0
$46,180.00

Large Passenger Vans
Rear Wheel Drive
Base MSRP: $39,995.00
Invoice: $37,195.00
Hwy MPG: N/A mpg
City MPG: N/A mpg

Pros

Amazing interior space; easy ingress/egress; seating comfort; responsive turbo-diesel engines; fuel-efficiency; reputation for longevity

Model Highlights

The 2015 Mercedes-Benz Sprinter is powered by a 2.1L turbodiesel BlueTEC engine. The 4-cylinder unit makes 161 horsepower and 265 ft-lb of torque. The optional 3.0L turbodiesel BlueTEC V6 engine makes 188 horsepower and 325 ft-lb torque -- the latter figure explains the Sprinter's surprisingly good acceleration, even with a full load. The 4-cylinder engine is mated to a 7-speed automatic transmission, while the V6 is paired with a 5-speed automatic. Mercedes-Benz says that the powertrain gets 30 percent better fuel economy than a comparable gasoline engine and complies with the most up-to-date emissions standards from the EPA and California Air Resources Board.

The Sprinter's upright body, with nearly vertical side walls and a rather low loading floor, is incredibly spacious inside, leaving several feet above most occupants' heads and plenty of legroom no matter the row. There's a choice between standard and high-roof models, as well as a 144-inch or 170-inch wheelbase and with the taller body, occupants up to 6'-4" can stand in the cabin. There are four rows of seating, with the capability to carry up to 12 passengers. Entry and exit are quite easy, thanks to a wide-opening sliding door that opens to an amazing 4'-3" wide and six feet high. The standard rear doors open 270 degrees for easy cargo loading as well.

The Sprinter has an instrument panel that's a little more car-like than other full-size vans, but its seating position is quite upright. Overall, the Sprinter drives with a more confident, planted cornering feel than might be expected from such a tall vehicle. That's thanks to an independent, coil-spring front suspension and rack-and-pinion steering. Four-wheel anti-lock disc brakes with brake assist and 16-inch wheels are standard.

Adaptive ESP, a special stability control system that uses Load Adaptive Control to adjust to the load being carried, is standard on all Sprinter Passenger Van models. Several new safety technologies have been carried over from Mercedes' passenger car side, including Collision Prevention Assist, Blind Spot Assist, Highbeam Assist and Lane Keeping Assist. Side thorax front airbags and side-curtain bags are available.

Standard features on the Sprinter Passenger Van include a tilt and telescopic steering wheel, automatic climate control, front-seat armrests and power front windows. In addition to the V6, options include cruise control, roof rails, a self-leveling system, bi-xenon HID headlamps, a heated windshield, auxiliary rear heating and a rearview camera system. Available Park Assist helps drivers to safely back the vehicle into position. A number of packages are also offered, including a Cold Climate Package, Mobility Package and Trailer Hitch Package. So equipped, the Sprinter can tow up to 5,000 pounds.

Model News

The Mercedes-Benz Sprinter is mostly unchanged for 2015, after several notable improvements for last year. New options for 2015 include a taller roof on 170-inch wheelbase models, as well as the option of all-wheel drive on select models.

Value Writeup

The Mercedes-Benz Sprinter, with its easy entry and exit, comfortable seating and economical operation, is well-suited to just about any person-carrying job out there. Mercedes-Benz diesel engines are known for their longevity and durability, as well as their low cost of operation over many years of ownership. Mercedes-Benz says that the Sprinter offers best-in-class roof height and the easiest step-in height among large vans.

Pricing

To get up to date 2015 Mercedes-Benz Sprinter Passenger Vans values, we highly recommend you evaluate and compare the Retail, Private Party, and/or Trade-In Values from the following reputable market pricing providers:

Exterior Color Interior Colors


Blue Gray

Manufacturers Code: (709)

  • Black
  • Black


Obsidian Black Metallic

Manufacturers Code: (197)

  • Black
  • Black


Cavansite Blue Metallic

Manufacturers Code: (890)

  • Black
  • Black


Flame Red

Manufacturers Code: (432)

  • Black
  • Black


Gray White

Manufacturers Code: (136)

  • Black
  • Black


Aqua Green

Manufacturers Code: (830)

  • Black
  • Black


Tenorite Gray Metallic

Manufacturers Code: (755)

  • Black
  • Black


Vanda Blue

Manufacturers Code: (957)

  • Black
  • Black


Graphite Gray Metallic

Manufacturers Code: (759)

  • Black
  • Black


Stone Gray

Manufacturers Code: (160)

  • Black
  • Black


Jet Black

Manufacturers Code: (040)

  • Black
  • Black


Brilliant Blue

Manufacturers Code: (362)

  • Black
  • Black


Velvet Red

Manufacturers Code: (583)

  • Black
  • Black


Calcite Yellow

Manufacturers Code: (243)

  • Black
  • Black


Arctic White

Manufacturers Code: (147)

  • Black
  • Black


Steel Blue

Manufacturers Code: (389)

  • Black
  • Black


Graphite Gray

Manufacturers Code: (224)

  • Black
  • Black


Pearl Silver Metallic

Manufacturers Code: (764)

  • Black
  • Black


Jupiter Red

Manufacturers Code: (589)

  • Black
  • Black


Black Blue

Manufacturers Code: (524)

  • Black
  • Black


Brilliant Silver Metallic

Manufacturers Code: (744)

  • Black
  • Black


Pebble Gray

Manufacturers Code: (701)

  • Black
  • Black


Dolomite Brown Metallic

Manufacturers Code: (526)

  • Black
  • Black


Silver Gray

Manufacturers Code: (708)

  • Black
  • Black

Vehicle

Emissions
Tons/yr of CO2 Emissions @ 15K mi/yearN/A
EPA Greenhouse Gas ScoreN/A
Vehicle
Rear Door TypeSplit Swing-Out

Chassis

Weight Information
Gross Axle Wt Rating - Front3970 lbs
Gross Axle Wt Rating - Rear5360 lbs
Curb Weight - FrontN/A
Curb Weight - RearN/A
Option Weight - Front0.00 lbs
Option Weight - Rear0.00 lbs
Reserve Axle Capacity - FrontN/A
Reserve Axle Capacity - RearN/A
As Spec'd Curb WeightN/A
As Spec'd PayloadN/A
Maximum Payload CapacityN/A
Gross Combined Wt Rating13550 lbs
Gross Axle Weight Rating9330.00 lbs
Curb WeightN/A
Reserve Axle CapacityN/A
Total Option Weight0.00 lbs
Gross Vehicle Weight Rating8550.00 lbs
Trailering
Dead Weight Hitch - Max Trailer Wt.5000 lbs
Dead Weight Hitch - Max Tongue Wt.500 lbs
Wt Distributing Hitch - Max Trailer Wt.5000 lbs
Wt Distributing Hitch - Max Tongue Wt.500 lbs
Maximum Trailering Capacity5000 lbs
Frame
Frame TypeN/A
Sect Modulus Rails OnlyN/A
Frame RBMN/A
Frame StrengthN/A
Frame ThicknessN/A
Suspension
Suspension Type - FrontStrut
Suspension Type - RearLeaf
Spring Capacity - Front3970 lbs
Spring Capacity - Rear5360 lbs
Axle Type - FrontIndependent
Axle Type - RearRigid Axle
Axle Capacity - FrontN/A
Axle Capacity - RearN/A
Axle Ratio (:1) - Front3.92
Axle Ratio (:1) - Rear3.92
Shock Absorber Diameter - FrontN/A
Shock Absorber Diameter - RearN/A
Stabilizer Bar Diameter - FrontN/A
Stabilizer Bar Diameter - RearN/A
Tires
Front Tire Order CodeRH8
Rear Tire Order CodeRH8
Front Tire SizeLT245/75R16
Rear Tire SizeLT245/75R16
Spare Tire SizeFull-Size
Front Tire Capacity6084 lbs
Rear Tire Capacity5556 lbs
Spare Tire CapacityN/A
Revolutions/Mile @ 45 mph - Front662
Revolutions/Mile @ 45 mph - Rear662
Revolutions/Mile @ 45 mph - SpareN/A
Wheels
Front Wheel Size16 X 6.5 in
Rear Wheel Size16 X 6.5 in
Spare Wheel SizeFull-Size in
Front Wheel MaterialSteel
Rear Wheel MaterialSteel
Spare Wheel MaterialSteel
Steering
Steering TypeRack-Pinion
Steering Ratio (:1), OverallN/A
Steering Ratio (:1), On CenterN/A
Steering Ratio (:1), At LockN/A
Turning Diameter - Curb to Curb47.6 ft
Turning Diameter - Wall to WallN/A
Brakes
Brake TypeN/A
Brake ABS System4-Wheel
Brake ABS System (Second Line)4-Wheel
Disc - Front (Yes or )Yes
Disc - Rear (Yes or )Yes
Front Brake Rotor Diam x ThicknessN/A
Rear Brake Rotor Diam x ThicknessN/A
Rear Drum Diam x WidthN/A
Fuel Tank
Fuel Tank Capacity, Approx26.4 gal
Aux Fuel Tank Capacity, ApproxN/A
Fuel Tank LocationMidship
Aux Fuel Tank LocationMidship

Powertrain

Transmission
DrivetrainRear Wheel Drive
Trans Order CodeG42
Trans Type7
Trans Description Cont.Automatic w/OD
First Gear Ratio (:1)4.38
Second Gear Ratio (:1)2.86
Third Gear Ratio (:1)1.92
Fourth Gear Ratio (:1)1.37
Fifth Gear Ratio (:1)1.00
Sixth Gear Ratio (:1)0.82
Reverse Ratio (:1)3.42
Clutch SizeN/A
Final Drive Axle Ratio (:1)N/A
Transfer Case ModelN/A
Transfer Case Gear Ratio (:1), HighN/A
Transfer Case Gear Ratio (:1), LowN/A
Transfer Case Power Take OffNo
Seventh Gear Ratio (:1)0.73
Mileage
EPA Fuel Economy Est - HwyN/A
Cruising Range - CityN/A
EPA Fuel Economy Est - CityN/A
Fuel Economy Est-CombinedN/A
Cruising Range - HwyN/A
Engine
Engine Order CodeMG3
Engine TypeIntercooled Turbo Diesel I-4
Displacement2.1 L/131
Fuel SystemDiesel Direct Injection
SAE Net Horsepower @ RPM161 @ 3800
SAE Net Torque @ RPM265 @ 1400
Engine Oil CoolerNone
Electrical
Cold Cranking Amps @ 0° F (Primary)850
Cold Cranking Amps @ 0° F (2nd)850
Cold Cranking Amps @ 0° F (3rd)N/A
Maximum Alternator Capacity (amps)200
Cooling System
Total Cooling System CapacityN/A

Dimensions

Interior Dimensions
Passenger Capacity12
Front Head RoomN/A
Front Leg RoomN/A
Front Shoulder RoomN/A
Front Hip RoomN/A
Second Head RoomN/A
Second Leg RoomN/A
Second Shoulder RoomN/A
Second Hip RoomN/A
Third Head RoomN/A
Third Leg RoomN/A
Third Shoulder RoomN/A
Third Hip RoomN/A
Fourth Head RoomN/A
Fourth Leg RoomN/A
Fourth Shoulder RoomN/A
Fourth Hip RoomN/A
Exterior Dimensions
Wheelbase144.3 in
Length, Overall w/rear bumperN/A
Length, OverallN/A
Width, Max w/o mirrors79.7 in
Height, Overall96.3 in
Overhang, FrontN/A
Overhang, Rear w/o bumperN/A
Front Bumper to Back of CabN/A
Cab to AxleN/A
Cab to End of FrameN/A
Ground to Top of Load Floor27.6 in
Ground to Top of FrameN/A
Frame Width, RearN/A
Ground Clearance, FrontN/A
Ground Clearance, RearN/A
Body Length0.00 ft
Rear Door Opening HeightN/A
Rear Door Opening WidthN/A
Side Door Opening HeightN/A
Side Door Opening WidthN/A
Step Up Height - FrontN/A
Step Up Height - SideN/A
Cab to BodyN/A
Cargo Area Dimensions
Cargo Area Length @ Floor to ConsoleN/A
Cargo Area Length @ Floor to Seat 1128.5 in
Cargo Area Length @ Floor to Seat 2128.5 in
Cargo Area Length @ Floor to Seat 332.5 in
Cargo Box Width @ Top, RearN/A
Cargo Area Width @ Beltline70.1 in
Cargo Box Width @ FloorN/A
Cargo Box Width @ Wheelhousings53.1 in
Cargo Box (Area) Height63.2 in
Tailgate WidthN/A
Cargo VolumeN/A
Cargo Volume to Seat 168.6 ft³
Cargo Volume to Seat 368.6 ft³
Cargo Volume to Seat 468.6 ft³
Ext'd Cab Cargo VolumeN/A

Exterior

Doors
Side Door TypeSliding

Warranty Information

Basic:
3 Years/36,000 Miles

Drivetrain:
3 Years/36,000 Miles

Corrosion:
5 Years/100,000 Miles

Roadside Assistance:
3 Years/36,000 Miles

Recall Information

US NHTSA CAMPAIGN ID:
14V764000

Mfg's Report Date:
NOV 30, 2014

Component:
ENGINE AND ENGINE COOLING:ENGINE:DIESEL

Potential Number Of Units Affected:
8279

Summary:
Mercedes-Benz USA, LLC - DBA Sprinter (Mercedes) is recalling certain model year 2014-2015 Sprinter 2500, and Sprinter 3500 vehicles manufactured February 28, 2014, to November 21, 2014. In the affected vehicles, oil may leak from around the chain tensioner gasket area.

Consequence:
Leaking oil may drip onto a hot engine surface, increasing the risk of a fire. Additionally, the leaking oil may be a road hazard for other vehicles, increasing the risk of a crash.

Remedy:
Mercedes will notify owners, and dealers will replace the chain tensioner gasket, free of charge. The recall began on December 19, 2014. Owners may contact Mercedes customer service at 1-877-762-8267. Mercedes' number for this recall is 2014120003.

Dates of Manufacture:
FEB 27, 2014 to NOV 20, 2014

Manufacturer Recall Number:
2014120003
US NHTSA CAMPAIGN ID:
15V082000

Mfg's Report Date:
FEB 09, 2015

Component:
STRUCTURE:BODY:DOOR

Potential Number Of Units Affected:
5586

Summary:
Mercedes-Benz USA, LLC - DBA Sprinter (Sprinter) is recalling certain model year 2015 Sprinter 2500 and 3500 vehicles manufactured July 1, 2014, to October 14, 2014. In the affected vehicles, the abutting wedge, a component attached to the door jamb to make opening the door easier after a severe frontal impact, may have been installed incorrectly.

Consequence:
If a vehicle that has an incorrectly installed abutting wedge is involved in a severe frontal accident, a greater force may be necessary to open the doors, increasing the risk of injury.

Remedy:
Sprinter will notify owners, and dealers will check the installation of the abutting wedge, correcting it as necessary, free of charge. The recall began in March 2015. Owners may contact Sprinter customer service at 1-877-762-8267.

Dates of Manufacture:
JUN 30, 2014 to OCT 13, 2014

Manufacturer Recall Number:
2015020004
US NHTSA CAMPAIGN ID:
15V261000

Mfg's Report Date:
MAY 04, 2015

Component:
ENGINE AND ENGINE COOLING:ENGINE:DIESEL

Potential Number Of Units Affected:
1335

Summary:
Mercedes-Benz USA, LLC - DBA Sprinter (Mercedes) is recalling certain model year 2015 Sprinter 2500 and Sprinter 3500 vehicles manufactured February 28, 2014, to January 22, 2015. In the affected vehicles, oil may leak from around the chain tensioner gasket area.

Consequence:
Leaking oil may drip onto a hot engine surface, increasing the risk of a fire. Additionally, the leaking oil may be a road hazard for other vehicles, increasing the risk of a crash.

Remedy:
Mercedes will notify owners, and dealers will replace the chain tensioner gasket, free of charge. The recall began May 18, 2015. Owners may contact Mercedes customer service at 1-877-762-8267. Note: This recall is an expansion of 14V-764.

Dates of Manufacture:
FEB 27, 2014 to JAN 21, 2015
US NHTSA CAMPAIGN ID:
16V093000

Mfg's Report Date:
FEB 17, 2016

Component:
EQUIPMENT:OTHER:LABELS

Potential Number Of Units Affected:
2278

Summary:
Daimler Vans USA, LLC (DVUSA) is recalling certain model year 2015-2016 Mercedes-Benz and Freightliner Sprinter 2500 and 3500 vans manufactured April 29, 2015, to December 15, 2015. The affected vehicles have a tire pressure label that incorrectly states a higher maximum load capacity than the vehicle is designed for.

Consequence:
The vehicle may be overloaded if loaded to the incorrect weight shown on the label, possibly resulting in axle or tire failure, increasing the risk of a crash.

Remedy:
DVUSA will notify owners, and Mercedes-Benz and Freightliner dealers will replace the incorrect tire pressure label, free of charge. The recall began March 2016. Owners may contact DVUSA customer service at 1-877-762-8267.

Dates of Manufacture:
APR 28, 2015 to DEC 14, 2015
US NHTSA CAMPAIGN ID:
16V261000

Mfg's Report Date:
APR 28, 2016

Component:
STRUCTURE:BODY

Potential Number Of Units Affected:
55

Summary:
Daimler Vans USA, LLC (DVUSA) is recalling certain model year 2015-2016 Mercedes Benz and Freightliner Sprinter 2500 and 3500 vehicles manufactured April 1, 2015, to October 31, 2015. The affected vehicles may have had multiple layers of paint applied, and as a result, in a crash, the windows may separate from the vehicle when the outer layer of paint peels from the layer below.

Consequence:
If the windows separate from the vehicle in a crash, the occupants are at a greater risk of injury.

Remedy:
DVUSA will notify owners, and dealers will remove the windows and inspect the paintwork, repainting the vehicles as necessary, free of charge. This recall began August 4, 2016. Owners may contact DVUSA customer service at 1-770-705-2070.

Dates of Manufacture:
MAR 31, 2015 to OCT 30, 2015
US NHTSA CAMPAIGN ID:
16V351000

Mfg's Report Date:
MAY 23, 2016

Component:
STRUCTURE:BODY:ROOF AND PILLARS

Potential Number Of Units Affected:
3

Summary:
Daimler Vans USA, LLC (DVUSA) is recalling certain model year 2015-2016 Mercedes-Benz Sprinter 2500 and 3500 vehicles manufactured May 31, 2015, to April 30, 2016, and 2015-2016 Freightliner Sprinter 2500 and 3500 vehicles manufactured May 1, 2015, to April 30, 2016. The affected vehicles are configured to have super-high roofs, but may not be equipped with the required crash pads.

Consequence:
If the required crash pads are missing, it can increase the risk of injury to a front passenger seat occupant if they are unbelted.

Remedy:
DVUSA will notify owners, and dealers will install the required crash-pads, free of charge. The recall began on August 11, 2016. Owners may contact DVUSA customer service at 1-877-762-8267.

Dates of Manufacture:
MAY 30, 2015 to APR 29, 2016
US NHTSA CAMPAIGN ID:
17V092000

Mfg's Report Date:
FEB 09, 2017

Component:
FUEL SYSTEM, DIESEL

Potential Number Of Units Affected:
2

Summary:
Daimler Vans USA, LLC (DVUSA) is recalling certain 2015 Mercedes-Benz Sprinter 2500 and 3500 vehicles. These vehicles were manufactured without a protective plate on the front of the gas tank and a foam ring at the filler neck. As such, these vehicles may not comply with the requirements of Federal Motor Vehicle Safety Standard (FMVSS) number 301, "Fuel System Integrity."

Consequence:
Without the protective plate and the foam ring installed, impacts may damage the tank resulting in a fuel leak that can increase the risk of a fire.

Remedy:
DVUSA will notify owners, and dealers will replace the fuel tank, free of charge. The recall began on June 6, 2017. Owners may contact DVUSA customer service at 1-877-762-8267.

Dates of Manufacture:
SEP 25, 2014 to OCT 08, 2014
US NHTSA CAMPAIGN ID:
17V094000

Mfg's Report Date:
FEB 09, 2017

Component:
POWER TRAIN:DRIVELINE:DRIVESHAFT

Potential Number Of Units Affected:
2

Summary:
Daimler Vans USA, LLC (DVUSA) is recalling certain 2015 Mercedes-Benz Sprinter 2500 and 3500 vehicles. The affected vehicles were manufactured without a driveshaft catch strap, allowing a loose driveshaft to strike the fuel tank. As such, these vehicles fail to comply with Federal Motor Vehicle Safety Standard (FMVSS) number 301, "Fuel System Integrity."

Consequence:
A loose driveshaft may strike and puncture the gas tank, resulting in a fuel leak, increasing the risk of a fire.

Remedy:
DVUSA will notify owners, and dealers will install a driveshaft catch strap, free of charge. The recall began on April 27, 2017. Owners may contact DVUSA customer service at 1-877-762-8267.

Dates of Manufacture:
SEP 25, 2014 to OCT 08, 2014
US NHTSA CAMPAIGN ID:
17V093000

Mfg's Report Date:
FEB 09, 2017

Component:
AIR BAGS

Potential Number Of Units Affected:
15338

Summary:
Daimler Vans USA, LLC (DVUSA) is recalling certain 2013-2016 Mercedes-Benz Sprinter 2500 and 3500 and Freightliner Sprinter 2500 and 3500 vans. These vehicles were manufactured without a reinforcement plate and protective bracket on the air bag control unit. As a result, the air bag control unit may not remain functional after the initial impact, possibly preventing additional air bags from deploying in response to a secondary impact.

Consequence:
If additional air bags do not deploy as intended, the occupants are at an increased risk of injury.

Remedy:
DVUSA will notify owners, and dealers will install a reinforcement plate and protective bracket around the air bag control unit, free of charge. The recall began on May 26, 2017. Owners may contact DVUSA customer service at 1-877-762-8267.

Dates of Manufacture:
MAR 31, 2013 to NOV 07, 2016


Rebate Information

Sorry there are no rebates or incentives currently available.
